Owner's manual for the Mercedes-Benz SL-Class R230, covering the SL 500, SL 55 AMG, SL 600 and SL 65 AMG.

Introduced in 2001, the Mercedes-Benz R230 continued the SL roadster tradition by combining performance, comfort and technology. One of its defining features was the Vario Roof, an electrohydraulically operated retractable hardtop that transformed the vehicle from a coupe into a roadster.

This generation expanded the use of electronic safety and chassis-control systems. The range included V-8 and V-12 engines, together with the high-performance SL 55 AMG and SL 65 AMG.

This Operator's Manual explains the controls, instruments and equipment fitted to the included models. It also covers systems such as KEYLESS-GO, Distronic, Parktronic, Active Body Control ABC and the electrohydraulic SBC brake system.

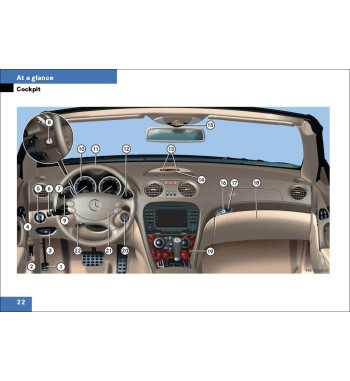

Illustrations help locate each control, interpret vehicle messages and follow basic operating procedures. The availability of some systems depends on the model and optional equipment installed.

Comfort, safety and driving

• SmartKey, KEYLESS-GO and central locking.
• Power seats, heating, ventilation and Memory function.
• Multifunction steering wheel, instruments and trip computer.
• Airbags, seat belts, roll bar and restraint systems.
• Automatic climate control and windshield defrosting.
• Automatic transmission and gear selection controls.
• Cruise control and Distronic.
• ABS, BAS, ESP and the SBC brake system.
• Active Body Control ABC and Parktronic.

Models included in this Mercedes-Benz SL-Class R230 Operator's Manual

• Mercedes-Benz SL 500.
• Mercedes-Benz SL 55 AMG.
• Mercedes-Benz SL 600.
• Mercedes-Benz SL 65 AMG.

Vario Roof retractable hardtop

The manual explains how to open and close the retractable hardtop, the conditions required for its operation and the use of the load-assist system in the trunk. It also includes guidance for situations in which the roof does not complete its movement correctly.

Driving and chassis-control systems

The document describes Active Body Control ABC, Distronic and Parktronic, together with the ABS, BAS, ESP and SBC systems. These sections help interpret their indicators, warnings and operating conditions.

Routine checks and practical procedures

Instructions cover checking engine oil, ABC system fluid, coolant and tire pressure. The manual also explains wheel changes, fuse and bulb replacement, jump starting, towing and several emergency procedures.

These instructions assist with basic operation and emergency situations but do not replace the diagnostic, removal or repair procedures provided in a workshop manual.

Maintenance and vehicle care

The manual provides information about the maintenance indicator, winter driving, tires and the cleaning of the bodywork, interior, sensors and other vehicle components.

Technical data and service products

The technical section contains identification data, dimensions, weights, wheels, tires, capacities, fuels, engine oils, coolant, brake fluid and other service products.

File specifications

• Format: PDF.
• Language: English.
• Pages: 474.
• File size: 7.5 MB.
• Delivery: immediate download link.
